Model
HMC630P

Item specifics

Numerical control
FANUC/SIEMENS/MITSUBISHI
Control method
Semi-closed loop control
Three axis
Roller linear guideway
pallet
two pallets

Review

Description

Product Introduction

HMC630P

Strong Rigidity High productivity Horizontal Machining Center

  • 50

    TAPER

  • 3

    AXIS

  • 6K

    RPM

  • 24

    TOOL CAPACITY

HMC630P Strong Rigidity and High productivity Horizontal Machining Center

Horizontal milling machine series is featuring high rigidity, heavy cutting ability and high operability. The strong base column construction has optimally-placed ribs to counter chatter and twisting during heavy cutting. With 3 axes roller linear guideway and wide area motor, this vertical machining center can perform heavy cutting and high speed machining with high torque from low to high speed.

PDF download

Product Detailed Parameters

Machine Model : HMC630P

TableValueUnit
working size630 x 700mm
Max. load capacity950kg
TravelValueUnit
X travel1050mm
Y travel750mm
Z travel900mm
SpindleValueUnit
Spindle nose taperBT50
Spindle speed (pulley)6000rpm
FeedValueUnit
Rapid traverse rate30/30/30m/min
ATCValueUnit
Number of tools24T

Product Details Map

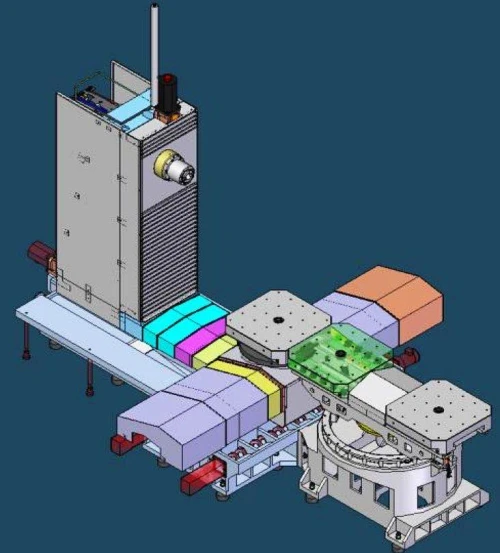

Machine Structure:

All the machine parts adopted finite element analysis

“M” type cross supporter ,the base weight more than 4000Kg

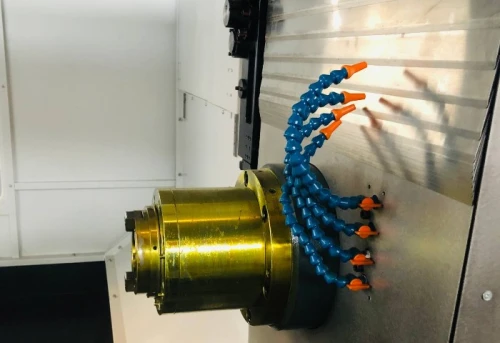

Spindle :

Standard machine with spindle house oil cooling system to reduce heat distortion during working and keep the stable machining accuracy.

Spindle bearings are three supporter type and six pairs, the dia Φ90mm,high rigidity and rotating accuracy.

Spindle front section with “air window” to protect bearings and increase life span.

Tool Magazine :

Standard: BT50 , 24 position Arm type tool magazine are made by OKADA/POJU who is Professional tool manufacturers in Taiwan.

Optional: Chain type 40T tool magazine.

Axes Driving :

TOP TAIWAN brand Ball screw & linear guideway

 Double nuts C3 level grinded ball screws.Screw diameter* pitch: 40*12/40*12/50*12

Roller type linear rails for three axis.The rail size and model: RGW45/RGH45/RGW55.Three axis Slide load block quantity: 4/4/4.

Three Automatic chip conveyors :

Two screw type conveyor to move the chips from inside machine to outside chain type conveyor during working, and the outside chip conveyor transfer the chips to chips tank.

The whole process is smoothly and high efficiency to clean the chips, reduce the machine body heat, escape from machine body heat distortion.

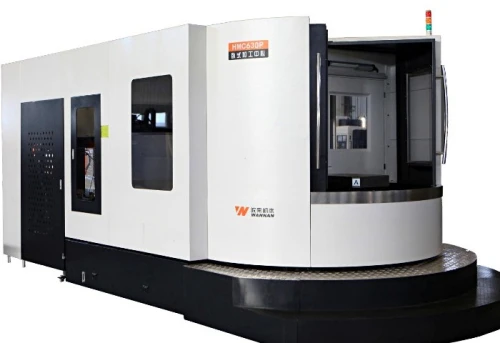

Physical Picture
