High rigidity heavy cutting large cnc machine SP1330
- Model
- SP1330
Item specifics

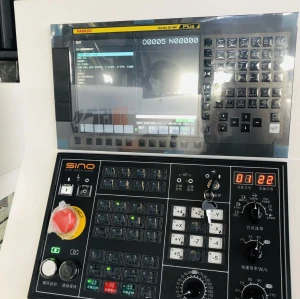

- CNCcontrol
- FANUC/SIEMENS/MITSUBISHI
- Control method
- Semi-closed loop control
- 3 axes
- X/Y roller linear guideway Z box guideway
- Brand
- SINO
Review
Description
Product Introduction
SP-1330
High Rigidity Heavy Cutting Double Column Machining Center
- 50
TAPER
- 3
AXIS
- 6k
RPM
- 24
TOOL CAPACITY

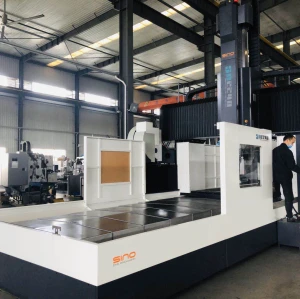

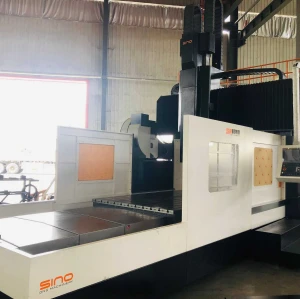

SP1330 High Rigidity Heavy Cutting Double Column Machining Center
For this series column and beam fixed double column machining center, we adopt international dynamic rigidity design idea and optimize the moving parts on the basic of high rigidity,structure symmetry,high stability of traditional double column machining center. This series of large CNC machine has the characteristic of high torque and fast feedback, which can meet the demand of auto,mould,aviation,military industrial and other mechanical machining field. This series machines are mainly made of base,worktable,columns,beam,saddle,hydraulic system,lubrication system,cooling and filtering system,chip device, CNC system and other parts.
Product Detailed Parameters
Machine Model : SP1330
Table | Value | Unit |
---|---|---|
working size | 3000 x 1300 | mm |
Max. load capacity | 7 | T |
Travel | Value | Unit |
---|---|---|
X travel | 3100 | mm |
Y travel | 1400+160 | mm |
Z travel | 800 | mm |
Distance between two columns | 1400 | mm |
Distance from spindle nose to worktable surface | 160-960 | mm |
Spindle | Value | Unit |
---|---|---|
Spindle nose taper | BT50 | |
Spindle speed (pulley) | 6000 | rpm |
Feed | Value | Unit |
---|---|---|
Rapid traverse rate | 10/10/10 | m/min |
ATC | Value | Unit |
---|---|---|
Number of tools | 24 | T |
Product Details Map
Spindle:
Belt type spindle is economic, it is with pneumatic tool clamping and unclamping;
Gear head type is with higher rigidity, better for heavy cutting compared with belt type;
For direct driven, spindle motor directly connects to spindle through high quality high torque high rigidity MAYR carbon fiber coupling (Tks=975Nm), which helps to fulfill the nice performance of main motor as overturn torque is much reduced.
Counter weight system (Double hydraulic cylinders):
Z axis with balance counterweight system ( double balance cylinder + hydraulic station ) to improve Z axis stability and positioning accuracy;
Hydraulic station not only provide power source for balance cylinder, but also for tool clamping and unclamping;
Double balance cylinder can efficiently decrease bending moment during Z axis movement.
3 axes driving :
The ball screws are directly coupled to the servo motor. It will express mostly motor performance and improve machine accuracy and efficiency;
10 years free service reducer STOBER in X \Z axes (Germany brand)
Spindle box :
With large cross section design, it improve spindle box rigidity by 20% compared with other competitors;
SINO spindle box thickness is 345mm, usually competitors’ is just 60mm
Saddle :
To improve saddle rigidity and anti-shock, Z axis is made of box guideway with plastic which is manually scraped well;
One piece of screw nut seat and saddle to improve machine accuracy
Beam
Ladder designed beam assured spindle case gravity backward;
Reasonable distance between guideway to spindle center by FEA
Base :
Foundation hole keep in vertical line with linear guideway which assure a better loading support;
If machine is installed by two holes, one fixing hole and one adjusting hole, the machine base is easily deformed due to unequal force;
Trapezoid foundation hole ensure machine stability;
500mm distance between two holes keep reasonable equal force
Imported configuration
