The CNC angle head is a machine tool accessory. With the milling head is installed on the machine, the rotation center line of the tool can be angled with the rotation center line of the spindle to process the workpiece. Now it has been widely used in various fields of mechanical processing such as aviation, automobiles, and molds.
CNC angle head
The CNC angle head is a machine tool accessory. With the milling head is installed on the machine, the rotation center line of the tool can be angled with the rotation center line of the spindle to process the workpiece. Now it has been widely used in various fields of mechanical processing such as aviation, automobiles, and molds. The use of a milling head can increase the processing range and adaptability without changing the structure of the machine tool, enabling some processing that is difficult to complete with traditional methods to be realized, mean while it can also reduce the repeated clamping of the workpiece, then highly improve the processing accuracy and efficiency.
Now on Sino doule column machining center, 90 degree angle milling head and 2 axes milling head are widely applied. These heads can also be divided into automatic type , semi-automatic and manual type due to its installation and clamping way difference. Here we will make a general introduction.
90 degree angle milling head
1.Automatic 90 degree angle milling head.
Recommend models: SP1830 and above
2.Semi- automatic 90 degree angle milling head.
Recommend models: SP1325 and above
3.Manual 90 degree angle milling head
Recommend models: Full range double column machining center
2 axes milling head ( universal)

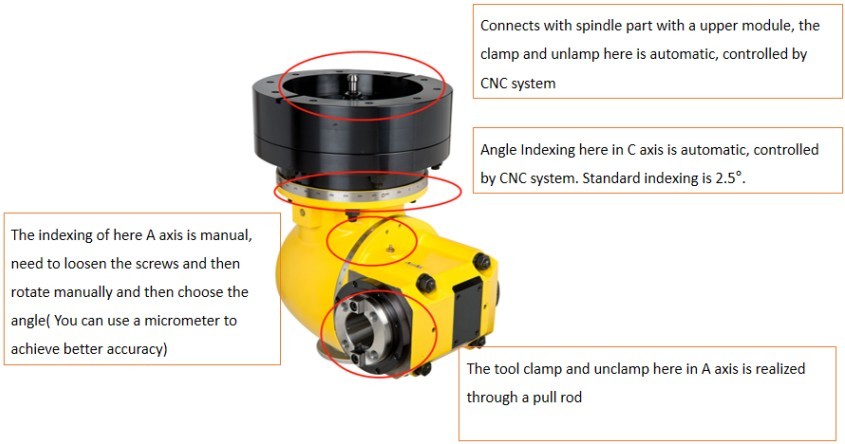

1.Semi-automatic 2 axes milling head
Recommend models: SP1830 and above

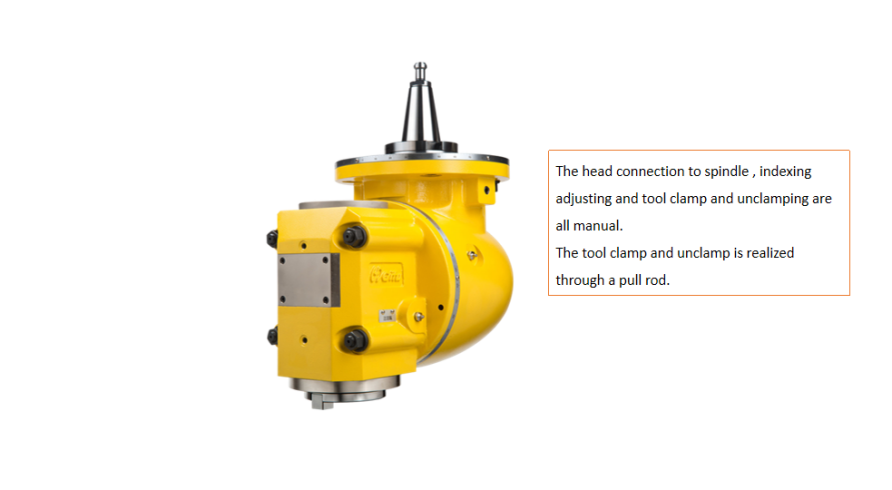

2.Manual 2 axes milling head
Recommend models: Full range double column machining center
